Vertical Chopper Pump for Tractor with Gear Multiplier and Adjustable Mixing Nozzle

Hydraulics

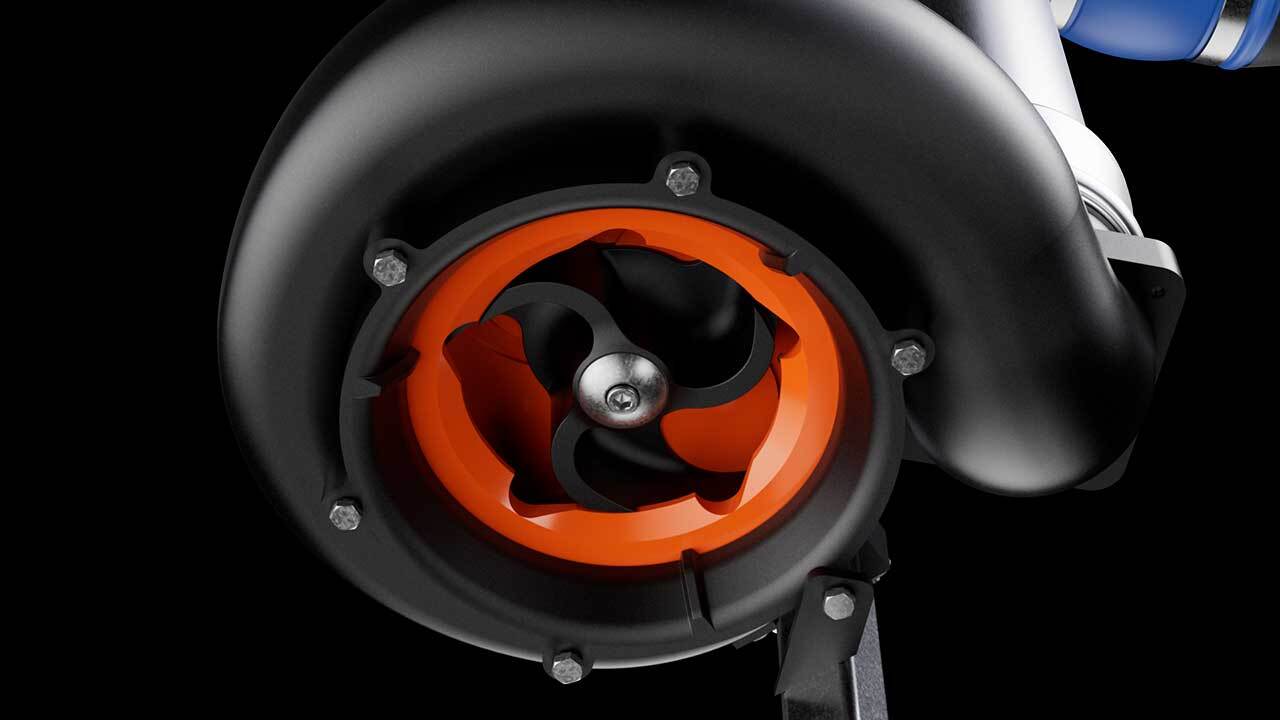

The LVT pump, with centrifugal-type hydraulics and an open three-channel impeller, ensures maximum efficiency even in the presence of dense slurry.

Chopping System

The chopping system, with double front and rear shearing discs, ensures effectiveness in managing fibrous slurry, completely preventing the tangling caused by long fibers.

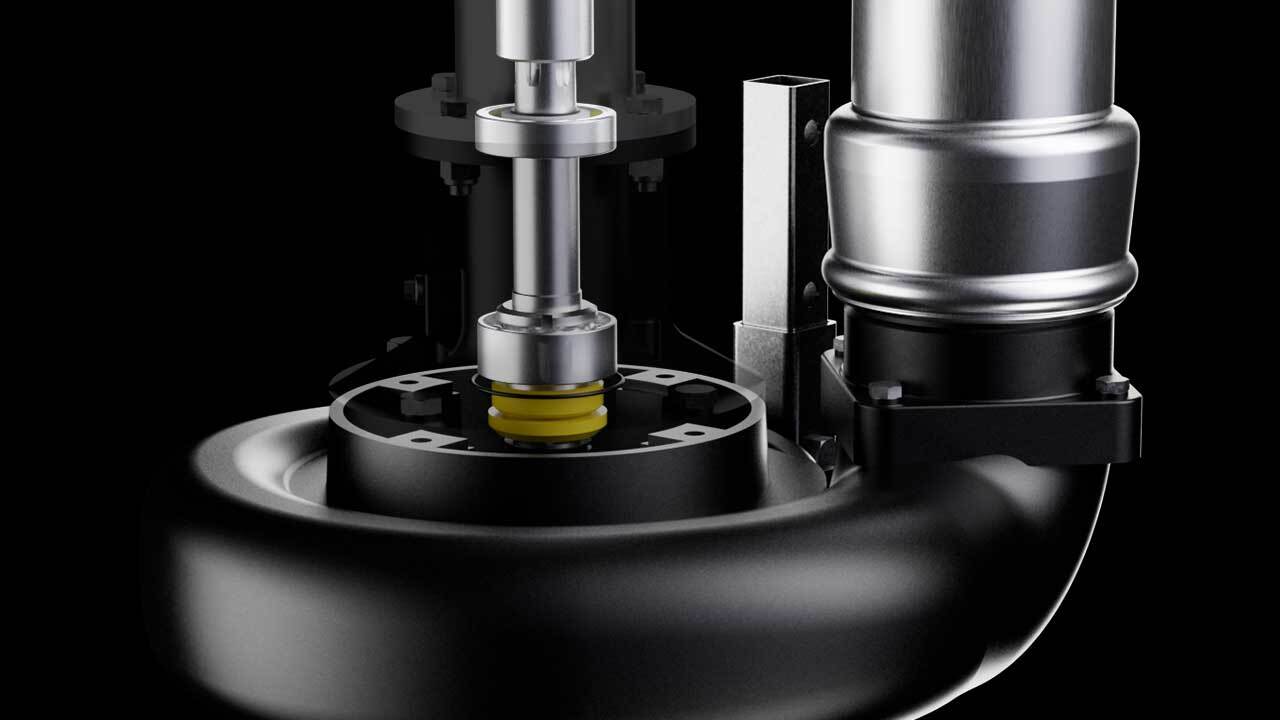

Transmission

The transmission, lubricated in an oil bath with widia-widia mechanical seals, provides high protection of the transmission components both from contact with the pumped liquid and from possible accidental dry running, in addition to extreme durability of its components.

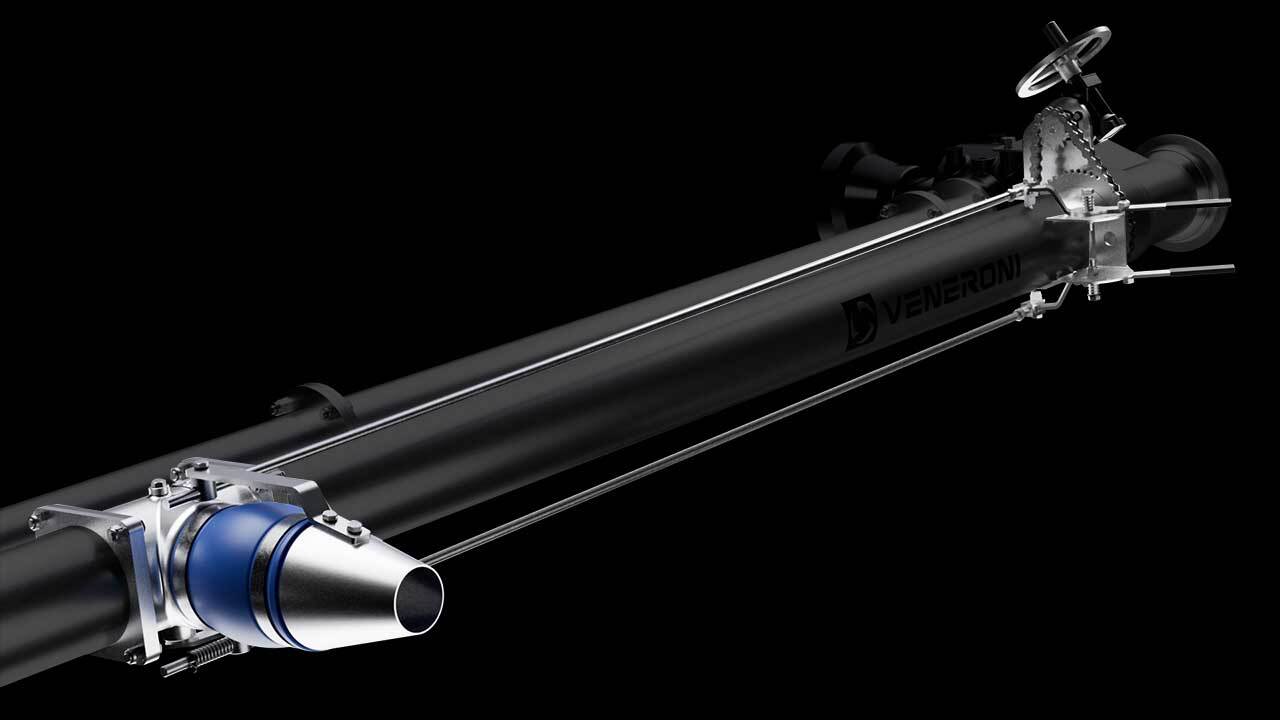

Discharge Pipe

The discharge pipe, equipped with an adjustable mixing nozzle, available with an optional hydraulic actuator, allows powerful and effective homogenization of the sediments in the liquid to be treated, facilitating pumping operations.

Trolley

The trolley with tractor lift attachment, available as an accessory, allows for the transport and flexible positioning of the pump at different points, ensuring considerable versatility.

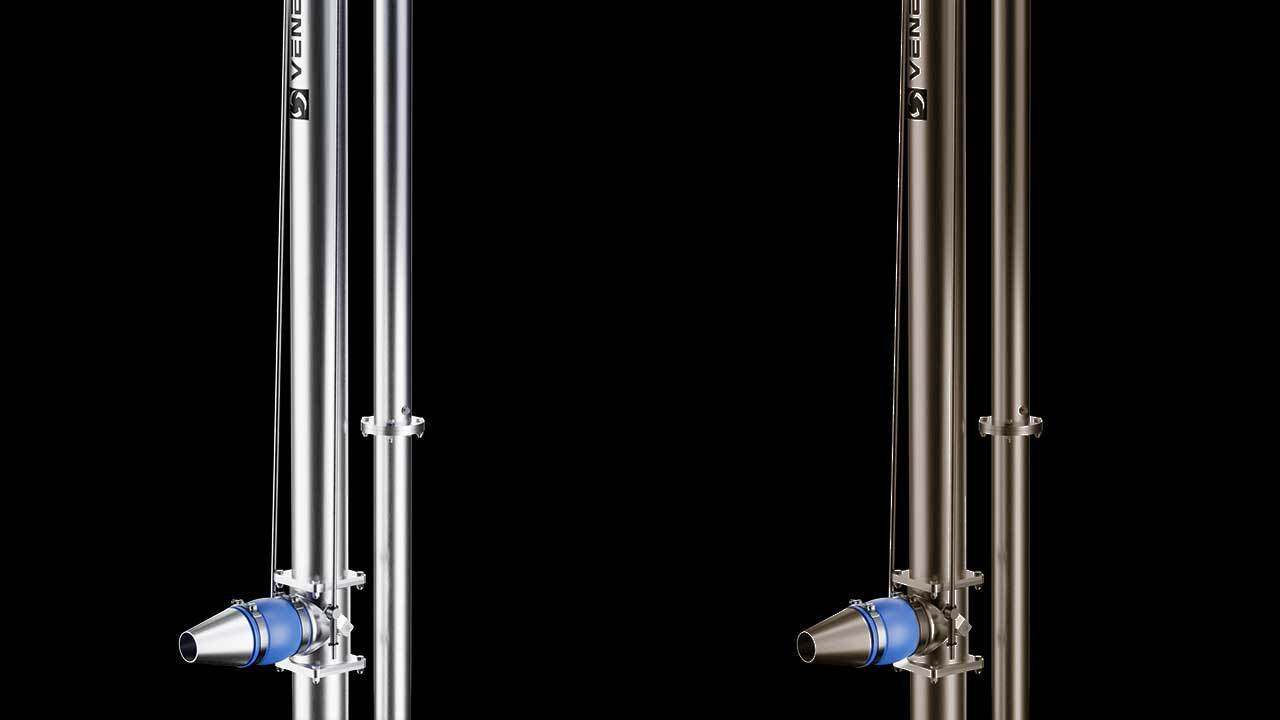

Metallurgy

The pump body and impeller are made of ductile cast iron, while the shearing discs are made of hardened steel. The shaft and fasteners are made of stainless steel, while the frame is available both in stainless steel and with optional hot-dip galvanizing. Maximum resistance to corrosion and wear in livestock effluents, ensuring long-term durability.

• Portata 684 m3/h
• Prevalenza 43 m
• Potenza 100 kW
