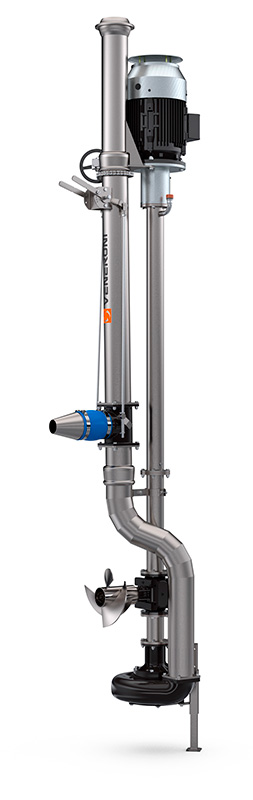

Vertical Crusher Pump with Electric Motor, Adjustable Mixing Nozzle, and Mixing Propeller

Hydraulics

The LVEM pump, featuring centrifugal-type hydraulics with an open three-channel impeller, ensures maximum efficiency even in the presence of dense slurry.

Crushing System

The crushing system, with dual front and rear shearing discs, guarantees effective management of fibrous slurry, completely preventing the tangling caused by long fibers.

Transmission

The transmission, lubricated in an oil bath with widia-widia mechanical seals, provides high protection for the transmission components both from contact with the pumped liquid and from potential accidental dry running, in addition to extreme component longevity.

Discharge Pipe

The discharge pipe, equipped with an adjustable mixing nozzle, allows for powerful and effective homogenization of the sediments in the liquid to be treated, facilitating pumping operations. The kit for pneumatic or electric actuator operation is an optional accessory that can be added after the machine's purchase.

Mixing Propeller

The mixing propeller performs precise localized mixing simultaneously with the pumping phase.

Metallurgy

The pump body and impeller are made of ductile cast iron, while the shearing discs are made of hardened steel. The shaft and fasteners are made of stainless steel, while the frame is available in both stainless steel and optional hot-dip galvanized. This offers maximum resistance to corrosion and wear in livestock effluents, ensuring long-term durability.

• Reach 360 m3/h
• Prevalance 20 m
• Power 9,2 ÷ 30 kW
